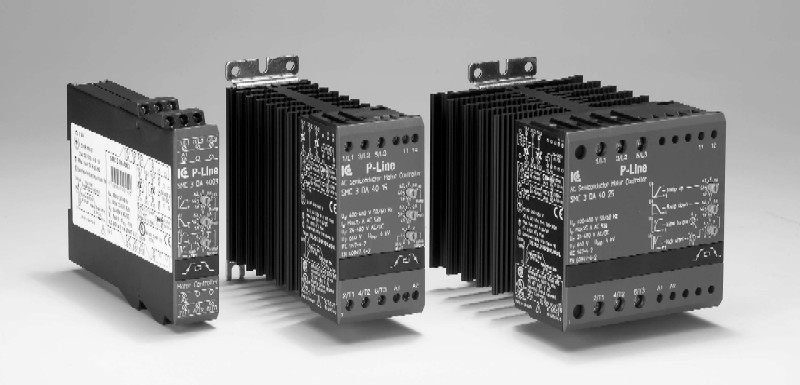

 IC Electronic Soft Starters Simple soft starter modules covering single phase control, two phase control and three phase control of induction motors. These modules are self contained including the heatsink, but do not include motor protection. Applications would ideally have a standard DOL or integral starter upstream.
(Three controlled phases) - Rated operational voltage up to 480 VAC 50/60Hz
- Rated operational current up to 86A (inside delta DBP)
- Output signal for By-Pass and Start/Stop
- Ramp Up and Down time adjustable
- Initial Torque adjustable with kick start
- Wide control voltage range (24VDC - 480VAC)
- Meets EN 60947-4-2 requirements
- Unlimited number of start/stop operations per hour
Data Sheets
Mechanical Data
(Two controlled phases) - Rated operational voltage up to 480 VAC 50/60Hz
- Rated operational current up to 25A/30A
- Output signal for By-Pass and Start/Stop SMC..BP
- Ramp Up and Down time adjustable
- Initial Torque adjustable with kick start
- Wide control voltage range (24VDC - 480VAC)
- Meets EN 60947-4-2 requirements
- Unlimited number of start/stop operations per hour
Data Sheets
Mechanical Data
(One controlled phase) [Starting Torque Limiter]
- Rated operational voltage up to 480 VAC 50/60Hz
- One unit for 1 ot three phase motors
- Rated operational current 15Amp or 25Amp
- Ramp up adjustable from 0.5 to 5 seconds
- Initial Torque adjustable from 0 to 85%
- LED status indication
- Meets EN 60947-4-2 requirements
- Unlimited number of start/stop operations per hour
Data Sheets
Mechanical Data
 |
|
